제품소개

Product Information

ATS Technology, Inc

제품소개

제품명

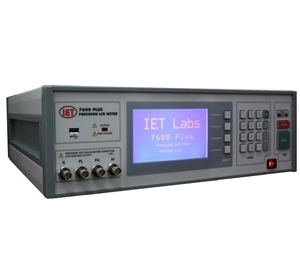

7600 PLUS PRECISION LCR METER
제조사
IET LABS, INC
특징
• Measures 14 impedance parameters (2 simultaneously)
• 0.05% basic measurement accuracy
• Programmable frequencies from 10 Hz to 2 MHz
• AC test voltage programmable from 20 mV to 5 V
• DC bias voltage: 2 V internal or 0 to 200 V external
• Fast measurement speeds up to 120/Second
• Automatic open/short compensation eliminates connection errors
• High resolution LCD with 7 digit display
