제품명

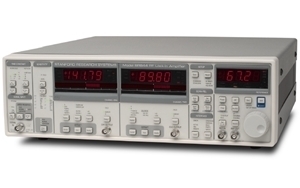

SR844(200 MHz lock-in amplifier)
제조사
Stanford Research Systems
특징
• 25 kHz to 200 MHz range
• 80 dB dynamic reserve
• Time constants from 100 µs to 30 ks
(6, 12, 18 or 24 dB/oct rolloff)
• "No Time Constant" mode
• Auto-gain, -phase, -reserve & -offset
• Internal or external reference
• Two 16-bit DACs and ADCs
• GPIB and RS-232 interfaces
