제품소개

Product Information

ATS Technology, Inc

제품소개

제품명

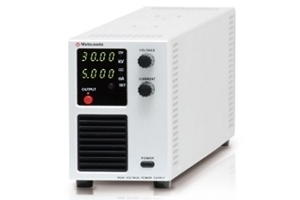

EPR 시리즈
1kV to 30kV /0 to 150mA
제조사
Matsusada
특징
• High voltage and high power of 10kV to 30kV / 150W in this compact size of only 3.3-inch width
• To be controlled by USB, LAN (Ethernet *1), RS-232C, RS-485 and GPIB is available. (Need digital interface separately)
• Safety remote setting and monitoring are available by digital optical communication
• IVI driver corresponding to LabView*2 and Visual Basic*3 is attached. (-LGob(SCPI) option)
• Five EPR are arranged to 19-inch racks, so high-density implementation is possible
